Miniature Differential Pressure

0-25″ H2O to 0-100 PSID

  • Small, rugged design
  • Low cost
  • OEM friendly
  • Gauge, gauge-switch, gaugetransmitter versions
  • Mini DP transmitters

Model

DP Range Min

DP Range Max

Max Line Pressure

Max Line Temperature

Accuracy

Electrical Availability

Specifications,
Instructions & Drawings

1002 PI/PIS/PT/PIT

PSID 0-4
bar 0-0.28

PSID 0-100
bar 0-7

3000 psig
(200 bar)

200°F (93°C)

5%

1 Switch
Transmitter

View Model Page →

1020 DI/DIS/DIT

PSID 0-1
In. H2O 0-25

PSID 0-30
In. H2O 0-830

1000 psig
(200 bar)

200°F (93°C)

5%

1 Switch
Transmitter

View Model Page →

D = Diaphragm   G=Gauge   S=Switch   T=Transmitter   P=Piston

*A DIN 43650C-PG7 with mating connector is optional, rated IP65

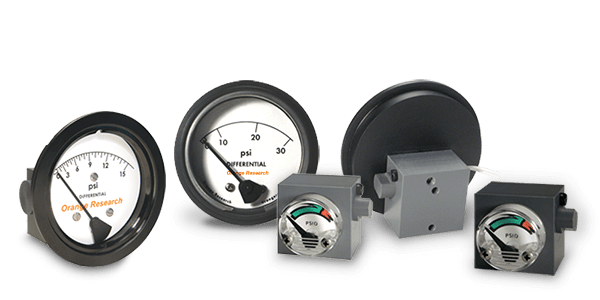

Miniature Differential Pressure Gauges

These miniature differential pressure gauges measure the pressure difference between two points. Acting in the place of two pressure gauges, these units allow for one simple reading on an easy-to-read scale. Popular in filtration, flow and level applications, they are a low cost alternative to bourdon tube and bellows designs. Both piston and diaphragm differential pressure miniature gauge models are available. Their small size and low cost make them ideal for OEM use.

We offer these miniature pressure gauges with bodies (and wetted parts) of aluminum. The indicator models come standard with a 1″ molded plastic lens while a 2.5″ dial is available as an option. A variety of porting options allow for any mounting configuration.

On 1″ dials a red/green dial with a breakpoint located at 70% of full scale alerts the user of the condition of the process. This matches the setpoint of the reed switch if ordered together.

For 1″ dials specify Breakpoint/Setpoint.
For 2″ dials specify full scale range.

Piston or Diaphragm Differential Pressure Gauge Models

  • 1002: Piston differential pressure sensor models, best for liquid applications as they have a slight amount of fluid migration from the high to low pressure ports.
  • 1020: Diaphragm differential pressure models, for air or gas applications or where fluid migration cannot be tolerated.



Differential Pressure Switches and Transmitters

A variety of reed switches can accompany the indicators or be supplied on their own, without a dial. SPST switches are offered normally open (N.O.) or normally closed (N.C.). SPDT reed switches also are available. New miniature transmitter models are available.
